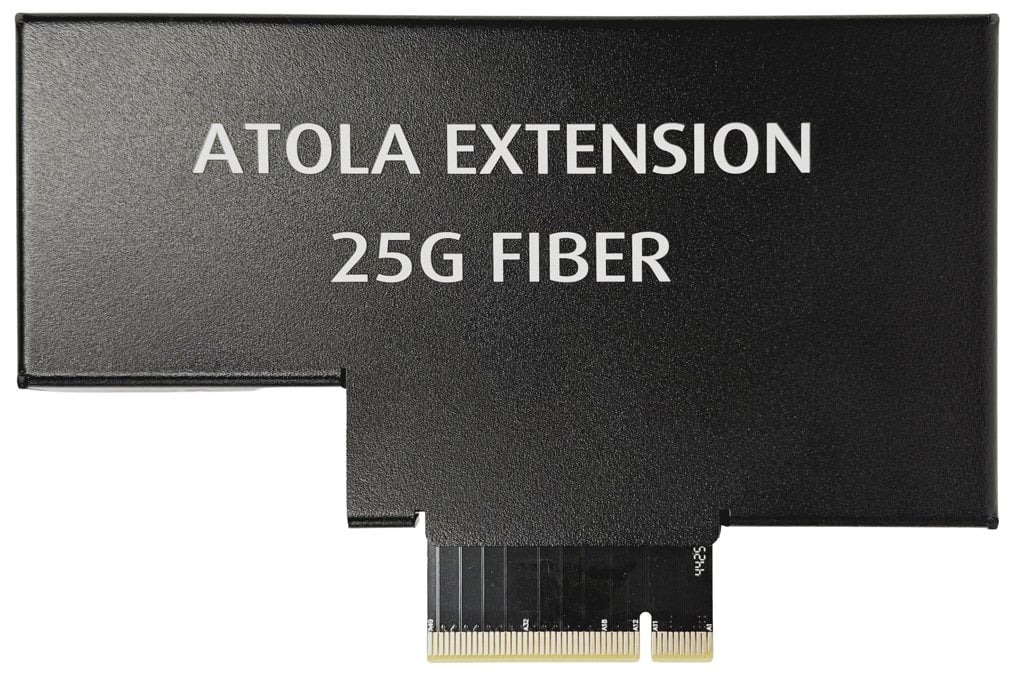

Atola 25G Fiber Extension
Facing too many evidence drives when imaging to a destination server?
This extension module allows TaskForce to process more drives in parallel if your lab has 25GbE or higher
infrastructure.
In practice, it leads to 2–3x improvement in total acquisition time.
Two 25 Gbit SFP28 ports
Can be used separately in local networks
Built-in cooling fan
Helps cope with the heat under heavy imaging workload
Bonding support
Aggregate bandwidth up to 50 Gb/s

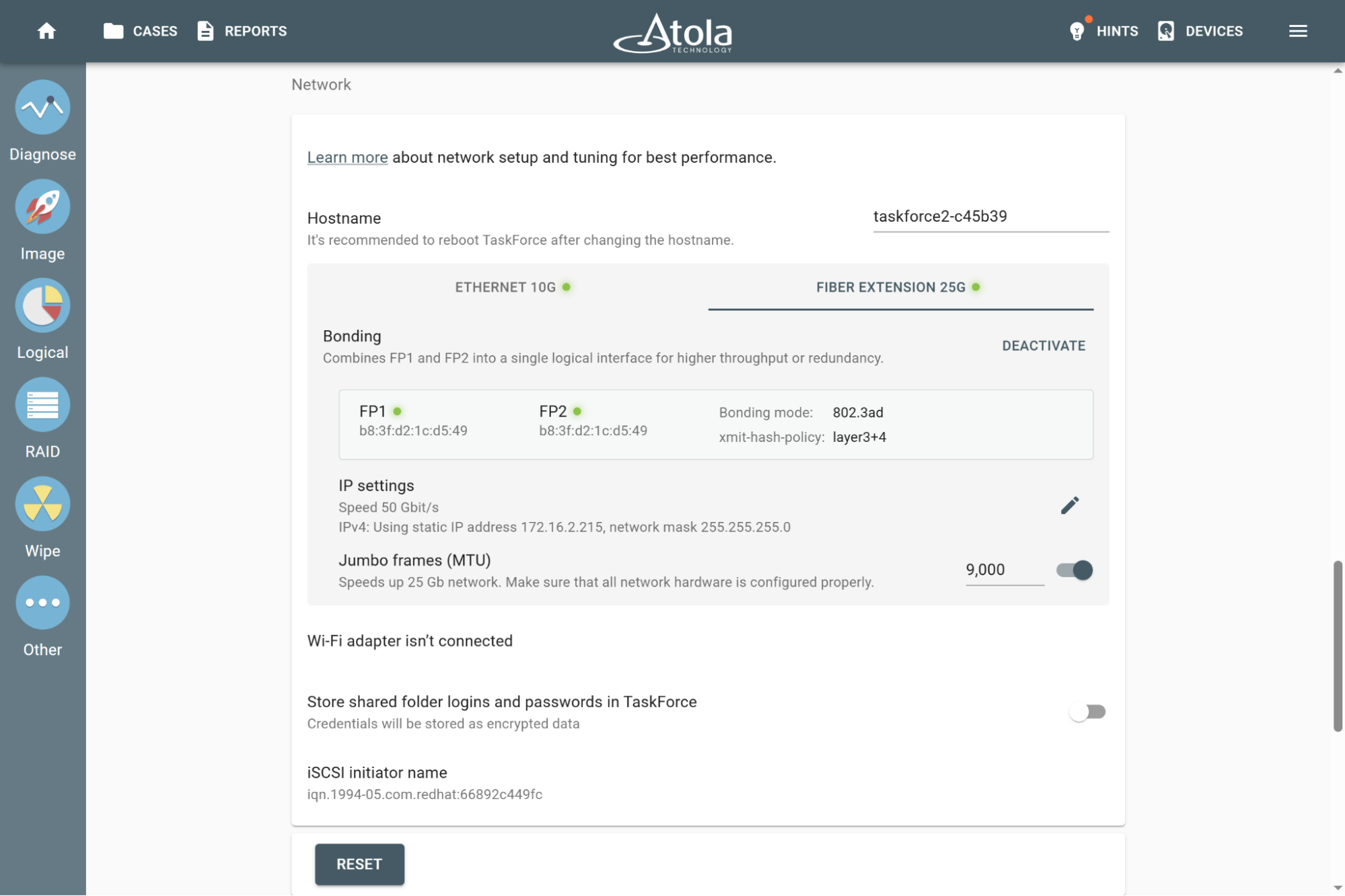

Settings in TaskForce UI
- Activate and deactivate bonding
- Set up a static or dynamic IP address and network mask
- Enable and customize jumbo frames (MTU)
- Set up DNS and gateway
25G Fiber settings
The 25G Fiber Extension is compatible with standard SFP28 optical modules and DAC cables.

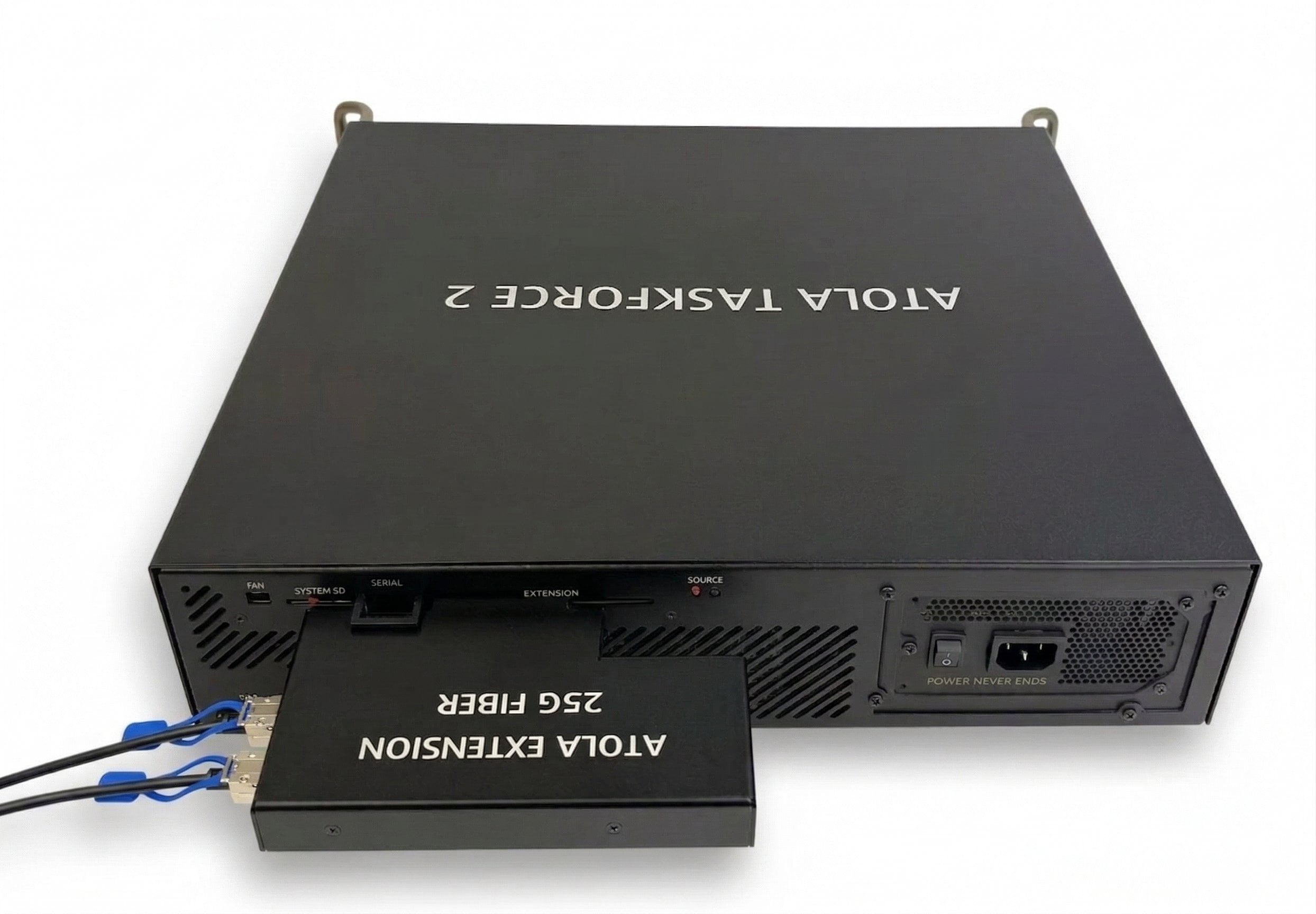

To use it, plug the module into the Extension port at the back panel of TaskForce 2.
Purchase and warranty
To place an order for Atola 25G Fiber Extension, see Where to buy.
Warranty for Extensions = 1 Year from date of purchase.
