Imaging an evidence drive to 3 targets

If you need to create multiple images of a drive for different purposes, with Insight you can image to three targets simultaneously. The targets can be of different types: another drive, an E01/AFF4/RAW file located on a server/workstation.

  1. In the sidebar, click Imaging.
  2. Click Create New Session.
  3. In the Target Device Selection dialog, select the target drives you want to image to and click the Select button.

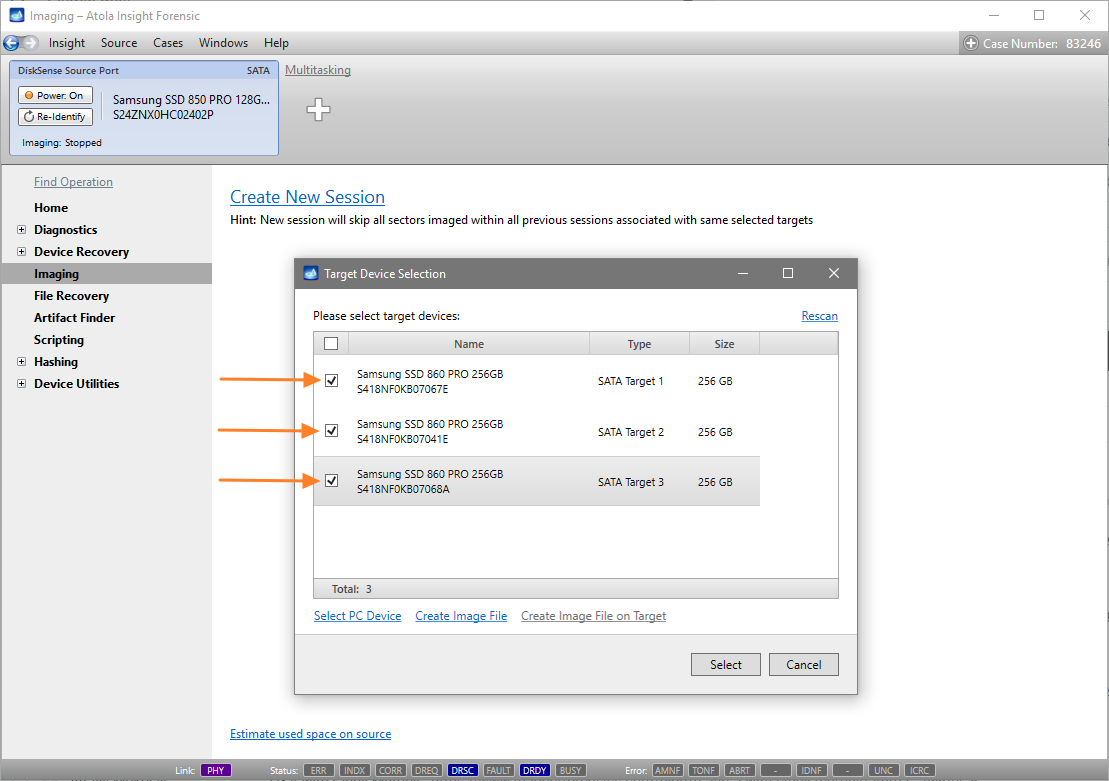

  4. Selecting target drives.

    Selecting target drives.

If one of the targets has to be a file, follow these steps:

  1. In the Target Device Selection dialog, click the Create Image File link.

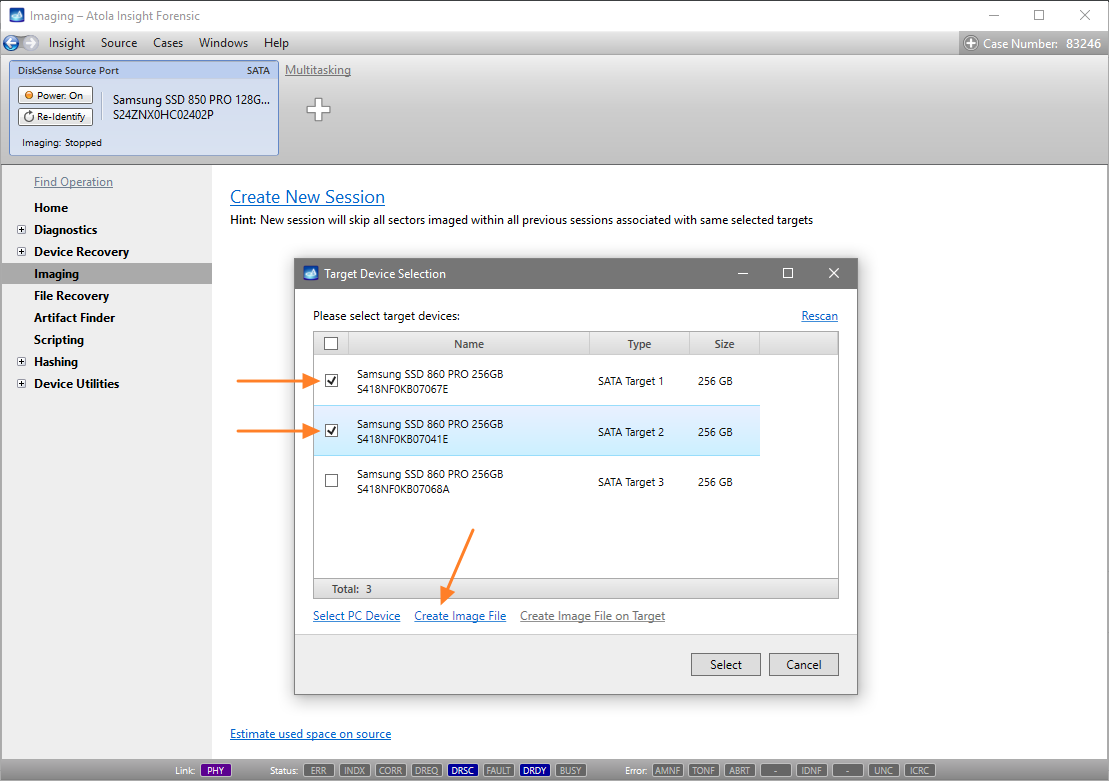

  2. The Create Image File link in the Target Device Selection dialog.

    The Create Image File link in the Target Device Selection dialog.

  3. Select file location, name and format, then click Open.

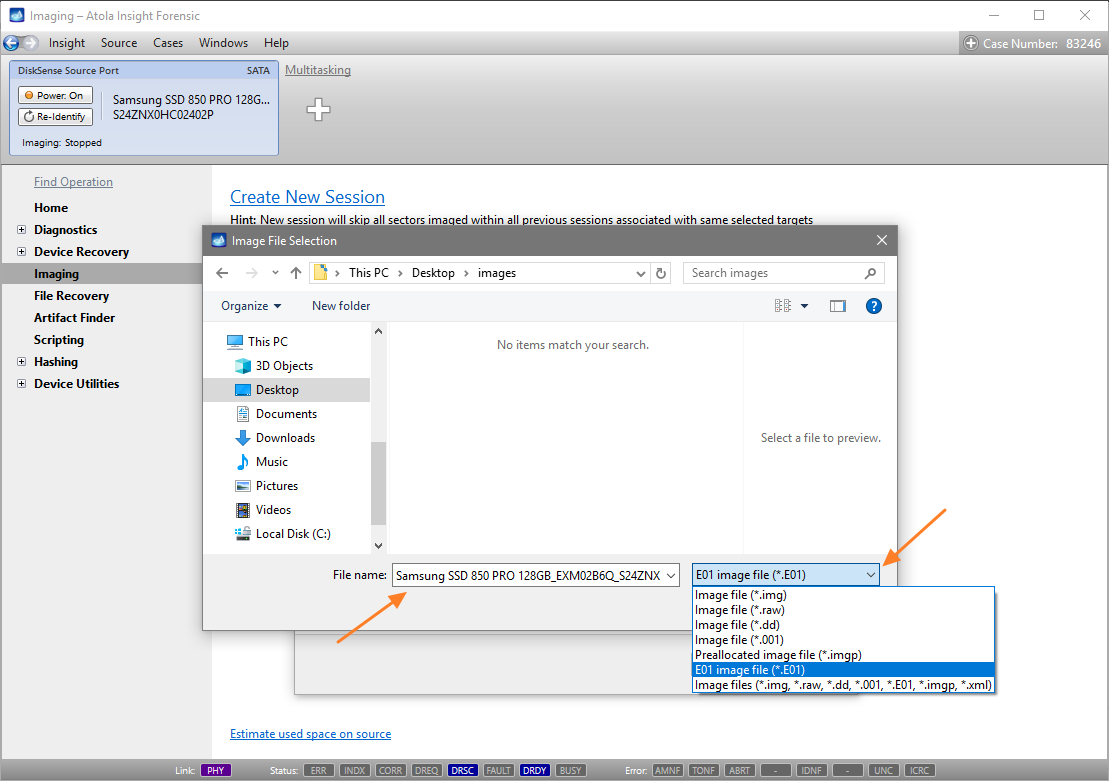

  4. Selecting target file.

    Selecting target file.

  5. Once you have selected all targets, click the Select button.

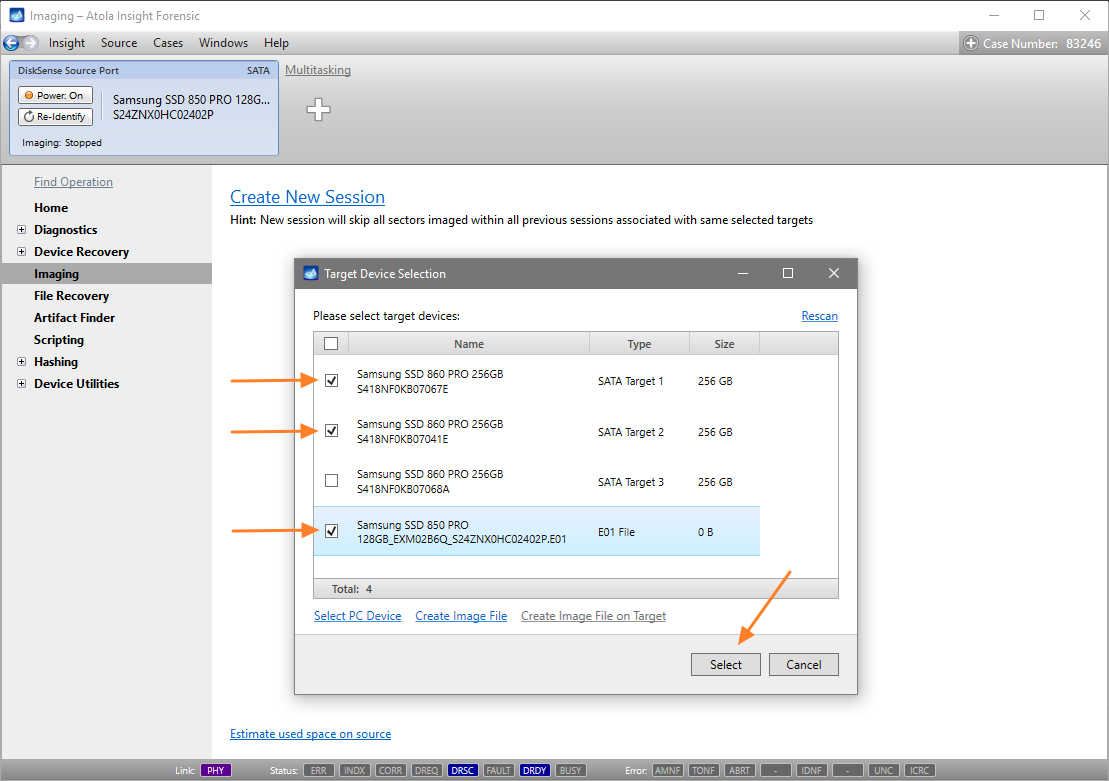

  6. Selecting multiple files as imaging targets.

    Selecting multiple files as imaging targets.

  7. Double-check the imaging settings and click the Start Imaging button.

Imaging data to 3 target files.

Imaging data to 3 target files.
